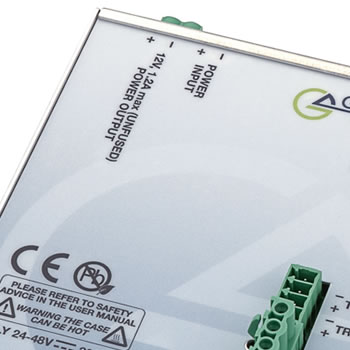

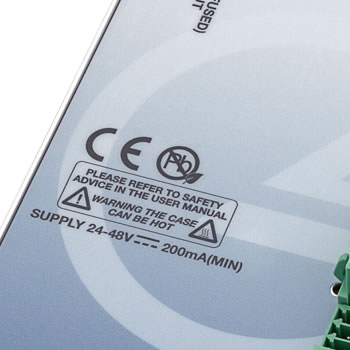

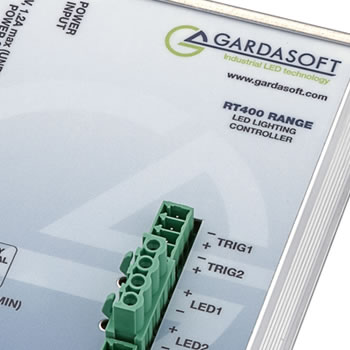

RT4XX LED Pulse and Strobe Controllers
  • RT4XX LED Pulse and Strobe Controllers
  • RT4XX LED Pulse and Strobe Controllers
  • RT4XX LED Pulse and Strobe Controllers
  • RT4XX LED Pulse and Strobe Controllers

RT4XX Series LED Strobe Controllers

Key features:

  • Compatible with nearly any LED lighting assembly available today
  • Four independently controlled output channels
  • Ethernet or RS232 configuration options
  • SafeSense™ technology for safe overdriving
  • SafePower™ for easy installation
  • Small compact unit with optional DIN mounting available

For a full specification please refer to the RT Series datasheet

Manufacturer connection diagrams

  • CCS Connectivity

The RT range is Gardasoft's latest generation of LED lighting controller solutions for machine vision applications. Implementing our patented SafePower™ technology, installation is very easy, removing the need of having to use a bespoke DC power supply or heat sinking the controller. All RT models also include our SafeSense™ technology, which enables the safe overdriving of LEDs. To get the very best out of your LED lighting solution, in terms of brightness stability and control, lighting should be driven from a current source, not a nominal voltage supply. The Gardasoft pulse /strobe controllers are current sources, with the RT4XX controller range offering four output channels which are independently controlled.

Each channel can be individually configured to output continuously; or pulsed based on an external trigger signal or internal timer. The 'F' version controller will allow pulse width control down to 1µS resolution. Selected mode allows switching of the light based upon the state of an external trigger.

The RT420 / RT460 models can be quickly configured using our free software (which can be downloaded from this page), or for the Ethernet enabled RT220 range, simply by accessing the controller via your internet browser; type in the IP address for the controller into your browser and you have full access to all of the parameters. If you are using a third party software package the RT4XX range has a simple command set that is detailed in the manual allowing easy communication. As with all Gardasoft products, all the settings are stored in non-volatile memory, and it will retain these settings even when the Ethernet connection is disconnected.

Using our patented SafeSense™ technology, the RT4XX range allows you to overdrive your LED lights safe in the knowledge that the lights will be protected from damage. The RT400 series will protect the lights ensuring that the high current pulses are regulated in terms of pulse width timing and frequency. The end result is you get the maximum light possible for your application. SafePower™ now allows you to overdrive the lights without having to increase the input power supply voltage (which you need to do with the Gardasoft PP range), making implementation and system integration much simpler). Gardasoft Controllers are universally compatible with LED Vision lighting, from manufacturers such as CCS. The Gardasoft White Paper on LED Controller technology is a useful reference for the principles of attaining maximum performance for Machine Vision illumination.

User interfaceEthernetRS232EthernetRS232
Output channelsFour independent constant current outputs with SafeSense™
Output currentUp to 2A per channel continuous or 20A pulsed in steps of 5mA
Output powerMax 30W per channel
Trigger inputs4 opto-isolated digital inputs. Require 3V to 24V operation
TimingFrom 20µs to 999 ms in steps of 20µs/100µsFrom 1µs to 999 ms in steps of 1µs/100µs
Delay from trigger to pulseFrom 20µs to 999 ms in steps of 20µs/100µsFrom 3µs to 999 ms in steps of 1µs/100µs
Timing repeatabilityDelay + Pulse up to 10ms: 0.1µs for pulse width and 3µs for delay.
Otherwise 100µs
Output voltage0V to 46V
Supply voltageRegulated 24V to 48V
Dimensions159mm long by 62mm high (excluding DIN fixing)
MountingPanel mounting. DIN rail mount option
