Triniti Technology

Product Partners — interworking between
Machine Vision product manufacturers

Four prominent Machine Vision product manufacturers, CCS, Smart Vision Lights, TPL and Metaphase are the leading triniti partners for LED Lighting; and the triniti API is already proven with Image Processing software from leading suppliers that include Cognex, Stemmer Imaging, National Instruments and Teledyne Dalsa.

  • CCS
  • Smart Vision Lights
  • TPL Vision
  • Metaphase
  • Cognex
  • National Instruments
  • Stemmer Imaging
  • Teledyne Dalsa

triniti comprises three key technological elements:

1

Integration of Lights into software

Integration of Lights into software

triniti-enabled LED Lights are seamlessly integrated into Machine Vision networks, providing diagnostic and configuration benefits through Imaging and Application processing software.

  • API provides for major imaging processing packages, such as Stemmer Imaging's Common Vision Blox, Cognex's Vision Pro, National Instruments' Lab View and Teledyne Dalsa's Sherlock;
  • User control is also provided for engineers with their own C#, C++ or VB.NET code;
  • Code snippet for Cognex's Insight cameras is also available;
  • GigE Vision has been implemented on the TR Lighting Controllers, to provide easy integration into other packages.

2

 Expert Light Control

Expert Light Control

triniti systems incorporate the control functionality of Gardasoft Vision's patented LED light controller technology, in either discreet or embedded form.

  • 1, 2 and 4 channel triniti Controllers
  • Up to 30W rating (1 ch), 50W rating (4 ch)
  • M12 Connector, for direct connection to triniti-enabled lights
  • Ethernet communication to User Control API
  • GigE Vision and GenICam compliant.

3

Light Identification and Operational Data

Light Identification and Operational Data

triniti chips are mounted into partners' lights or light cabling, thereby enabling: knowledge of light parameters; easy light connectivity, and light operational data.

  • direct connection to Gardasoft's triniti Controller is provided via an M12 Connector
  • for further details, visit the manufacturers websites.

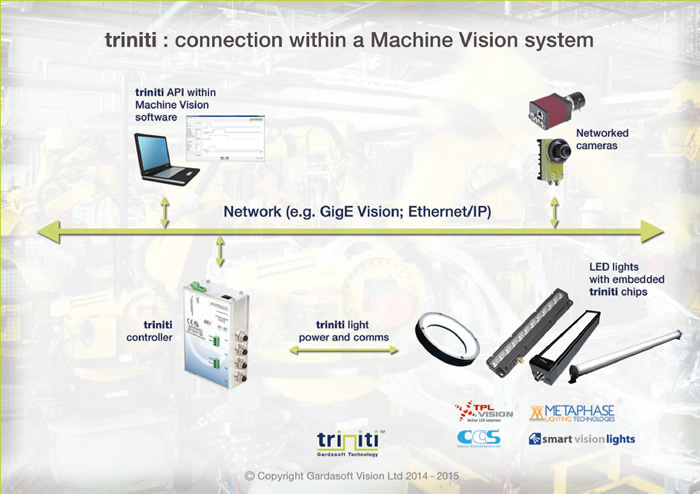

triniti connection within a Machine Vision system:

Gardasoft Triniti – integrates intelligent machine vision lighting from manufacturers such as CCS Inc and Smart Vision Lights with Image Processing Software including packages from Stemmer Imaging, Cognex and National Instruments
