triniti LED Controllers

Gardasoft Triniti LED Controller
  • Gardasoft Triniti LED Controller
  • Gardasoft Triniti LED Controller
  • Gardasoft Triniti LED Controller
  • Gardasoft Triniti LED Controller

TR Series LED Strobe Controllers

Key features:

  • 1, 2 and 4 channel LED lighting controllers
  • Compatible with triniti Intelligent Lighting platform
  • GigE Vision compliant
  • Pulsing up to 20A
  • Continuous output to 3.0A
  • 30W maximum output per channel
  • Pulse timing to 20µs
  • Ethernet and Push-button interfaces (dependent on model)

Triniti application benefits

  • Enables non-expert users to use expert Machine Vision lighting techniques
  • Revolutionises the integration of lighting parameters right through to application level software
  • Addresses the industry's need for a flexible system that is readily 'plug & play'
  • Provides a stability of brightness, long-term, that helps to enhance the reliability of Vision systems, over many years


Gardasoft TR Series LED Controllers are a core component of a triniti Intelligent Lighting system. triniti is a new enabling technology from Gardasoft, which provides expert control, operational intelligence and full integration of Machine Vision lighting – all within a 'plug & play' environment.

With triniti, Machine Vision systems with LED lighting are now much easier to create, configure and commission, while at the same time offering increased functionality.



triniti LED Lighting

LED Lighting

Four prominent Machine Vision product manufacturers, CCS, Smart Vision Lights, TPL and Metaphase are the leading triniti partners for LED Lighting; and the triniti API is already proven with Image Processing software from leading suppliers that include Cognex, Stemmer Imaging, National Instruments and Teledyne Dalsa.



  • CCS Connectivity
  • Smart Vision Lights
  • TPL Vision
  • Metaphase
Specification

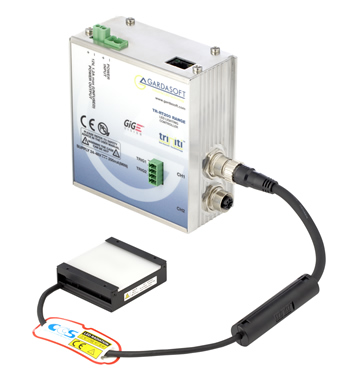

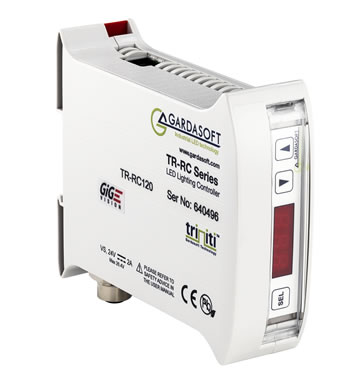

Parameter TR-RC120 TR-RC120TR-RC122 TR-RC122 TR-RT220(F)-20
TR-RT220(F)-2
TR-RT220(F)-20 & TR-RT220(F)-2

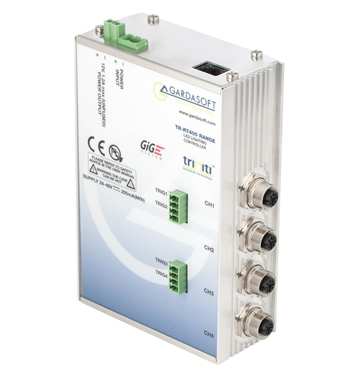

TR-RT420(F)-20
TR-RT420(F)-2
TR-RT420-20
User interfaceEthernet and Pushbutton/DisplayEthernet
Output channelOne constant current outputTwo independent constant current outputsFour independent constant current outputs
Output currentUp to 1.2A continuous or 2.0A pulsedUp to 1.25A continuous or 10.0A pulsedUp to 3.0A per channel continuous or 20A pulsed (-20 model)
Up to 2A continuous or pulsed (-2 model)
Output PowerMax 25WMax 30WMax 40W per unitMax 50W per unit
Trigger inputOne Smart input compatible with 3V-24V, TTL, NPN, and PNP.
Input impedance (nom): 8Kohm
Two opto-isolated digital inputs.
Require 3V-24V operation
Four opto-isolated digital inputs.
Require 3V-24V operation
Pulse TimingStandard versions
Pulse timing and Delay from trigger to pulsePulse 100µs to 100ms. Delay 2µs to 100ms
For delay + pulse up to 900µs: steps of 100µs, repeatability 1µs
For delay + pulse 900µs to 100ms: steps of 100µs, repeatability 100µs
Pulse 20µs to 1s. Delay 20µs to 1s
For delay + pulse up to 900µs: steps of 20µs, repeatability 1µs
For delay + pulse 900µs to 40ms: steps of 20µs, repeatability 6µs
For delay + pulse > 40ms: steps of 100µs, repeatability 100µs
Switch mode latencyMaximum 100µsMaximum 20µs
Pulse Timing‘F’ versions
Pulse timing and Delay from trigger to pulsen/aPulse 1µs to 1s. Delay 4µs to 1s
For delay + pulse up to 900µs: steps of 1µs, repeatability 1µs
For delay + pulse 900µs to 40ms: steps of 6µs, repeatability 6µs
For delay + pulse > 40ms: steps of 100µs, repeatability 100µs
Switch mode latencyn/aMaximum 4µs
Trigger rateMaximum 100HzMaximum 1Khz
Output voltage0V to 24V0V to 48V0V to 46V
Triniti interfaceGardasoft 4-wire Triniti lighting interface
Triniti communications interfaceGigE Vision V2.0, GenICam, UDP/TCP, Third party protocols
Supply voltageRegulated 24VDC±10%. A SELV power supply is required.Regulated 24V to 48V. A SELV power supply is required.
Dimensions101mm long x 35mm wide x 120mm high 101mm long x 60mm wide x 120mm high112mm long x 97mm wide x 62mm high159mm long x 97mm wide x 62mm high
Weight175g340g300g400g
MountingDIN rail mountPanel mounting. DIN rail option
Operating temperature-20°C to 50°C
HumidityUp to 95% non-condensing
StandardsCE, RoHS
