Industrial Lens Controller

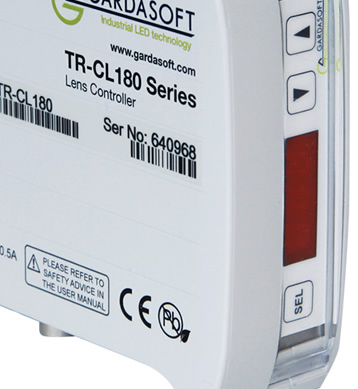

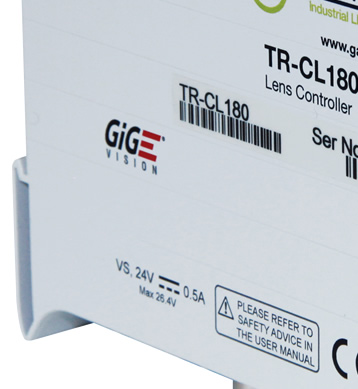

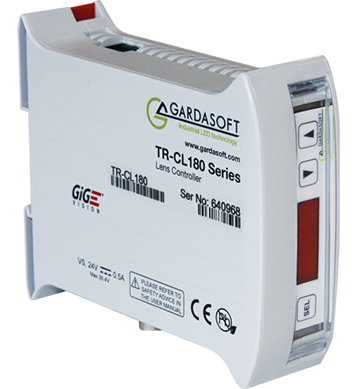

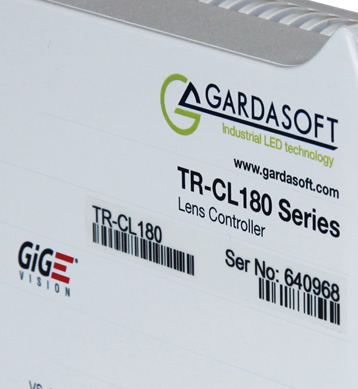

TR-CL180 Industrial Lens Controller
  • TR-CL180 Industrial Lens Controller
  • TR-CL180 Industrial Lens Controller
  • TR-CL180 Industrial Lens Controller
  • TR-CL180 Industrial Lens Controller

TR-CL180 Industrial Lens Controller

Key features:

  • One channel high resolution output
  • Include constant current Lens drive and Lens EEPROM data communications
  • -400mA to +400mA in 0.1mA steps
  • Compatible with Optotune EL-10-30-Ci and EL-16-40-TC and EL-3-10 lenses
  • Full current calibration with lens temperature compensation

Application benefits:

  • Industrial, precision control for Optotune lenses
  • Easy connection with cameras and lighting via triniti Intelligent Machine Vision platform
  • GigE Vision compliance, lenses therefore easily integrated with standard Image Processes software
Optotune


The Gardasoft TR-CL180 is a single-channel industrial Lens Controller which provides very accurate and repeatable control of tunable lenses. The TR-CL180 has been developed in close collaboration with Optotune. The TR-CL180 includes a precise, constant current drive for the liquid lens and is able to read data stored within the liquid lens. It is compatible with Optotune EL-10-30-Ci, EL-16-40-TC and EL-3-10 tunable lenses.

A new white paper discusses the embedded implementation of lens control for motorised lenses and liquid lenses: Embedded Lens Control White Paper.

With a fast focus change (1ms), the TR-CL180 enables dynamic lens control in Machine Vision systems which must function with objects of varying heights - Postal identification for example.

Microscopy and Life Sciences are also key market sectors for tunable lens control, addressing applications such as Z slices, Light sheet imaging, In vivo (live tissue) imaging, and many types of automated imaging. There is a National Instruments LabVIEW Utility available for the TR-CL Series, and this is particularly relevant for applications in these sectors.

For volume applications, or where lens controller functionality is required in a special format, Gardasoft Vision can supply specific solutions that are tailored to your requirements. Please contact us for more information.

Introduction to the Gardasoft Lens Controller

Application examples from Stemmer Imaging

Optotune

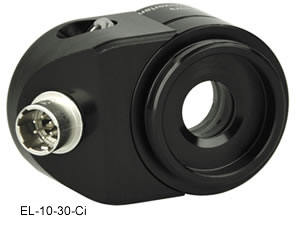

EL-16-40-TC EL-10-30-Ci


GigE Vision integration for Lens Controllers

TR-CL Lens controllers are GigE Vision compliant and mark an important addition in the integration of Machine Vision systems. The Lens controllers are part of the Gardasoft Triniti machine vision platform, so users now have seamless access and control of system cameras, lighting and lenses within the same environment (either via conventional image processing software or via a Triniti SDK).

In addition to LabVIEW support, utilities are also available for other leading machine vision imaging software packages such as Cognex VisionPro, Teledyne Dalsa Sherlock and Stemmer Imaging CVB.

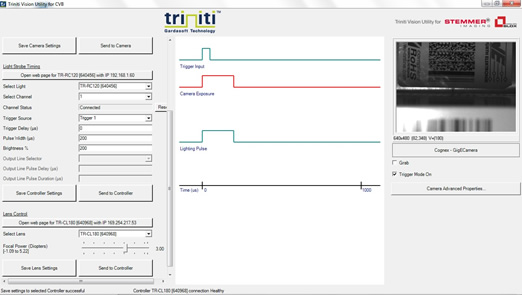

Gardasoft TR-CL180 Lens Controller within Stemmer CVB software



TR-CL180 Lens Controller specification

Specifications
ParameterTR-CL180 specifications
Output channelsOne channel, including constant current lens drive and lens EEPROM data communications. Automatically reads data from EEPROM inside lens which calibrates the controller response. The performance of the controller is therefore automatically tailored to each individual lens.
Lens compatibilityCompatible with following Optotune lens ranges
EL-10-30-Ci; EL-16-40-TC
Full current calibration with lens temperature compensation
Operating modesThree operating modes:
1. Single configurable optical power
2. Two optical powers, selected by digital input
3. Optical power set by analog input
Digital inputSmart input 3V-24V, TTL, NPN, PNP compatible
Analog input0V to 10V, 7K input impedance
Nominal 12-bit resolution
Refocus latency6ms (not including lens response)
Output current-400mA to +400mA in 0.1mA steps Accuracy +/- 0.5mA
Output voltage-16V to +16V
User interfaceEthernet (easy to use browser by means of in-built Web server)
RS232
Front Panel
User SDKTriniti SDK, applications written in C#, C++, VB
Lens connector6-way Hirose HR 10 G lens connector
Power supply24V +/-10%. An SELV power supply is required
Input power 10W maximum
Operating temperature5 to 50°C
HumidityUp to 95% non-condensing
Dimensions120mm x 101mm x 35mm
MountingDIN rail mount
Weight175g
StandardsCE, RoHS
