Connecting Gardasoft Controllers to Smart Vision Lights products

The Smart Vision Lights KEY Series are all able to connect directly to the Gardasoft Series of LED Controllers.
There is a universal connecting cable for all of the lights in this series.

Connecting Cable

Universal Connecting Cable

5m, 10m, or 15m

(supplied by SVL)

GRD-S75

GRD-S75

Brick Light
365nm to 940nm
Six, 1mm2 Die High Current LEDs

GRD-L300

GRD-L300

Linear Light
365nm to 940nm
Twelve, 1mm2 Die High Current LEDs

GRD-R80

GRD-R80

Ring Light
365nm to 940nm
Four, 1mm2 Die High Current LEDs

GRD-R130

GRD-R130

Ring Light
365nm to 940nm
Eight, 1mm2 Die High Current LEDs

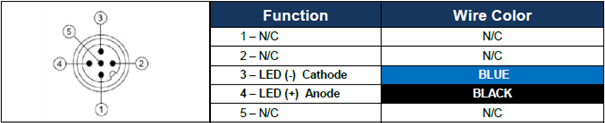

Connection Diagram

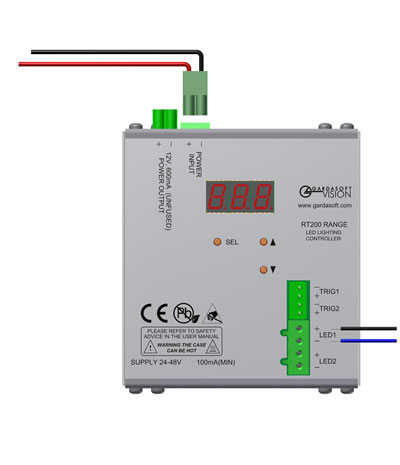

Gardasoft to Smart Vision Lights connection diagram
