Gardasoft to CCS connection diagram, HLV models

Connecting Gardasoft Controllers to CCS Standard HLV models (with SM connectors)

Gardasoft Controllers are universally connectable to all of the CCS range of LED Machine Vision lighting. Below you will find the connection for CCS HLV Standard models with SM connectors.

CCS website links:

CCS HLV2 Lighting
General CCS information

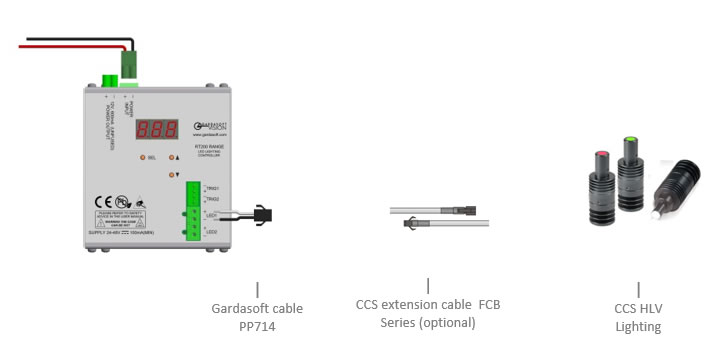

Connection Diagram

Connection Diagram
