Gardasoft to CCS connection diagram, 24V models

Connecting Gardasoft Controllers to CCS Standard 24V models (with SM connectors)

Gardasoft Controllers are universally connectable to all of the CCS range of LED Machine Vision lighting. Below you will find the connection for CCS 24V Standard models with SM connectors.

CCS website links:

CCS 24V Lighting
CCS Extension cable option FCB
General CCS information

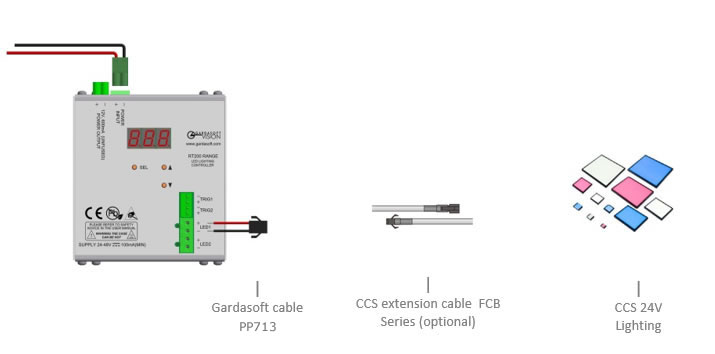

Connection Diagram

Connection Diagram
